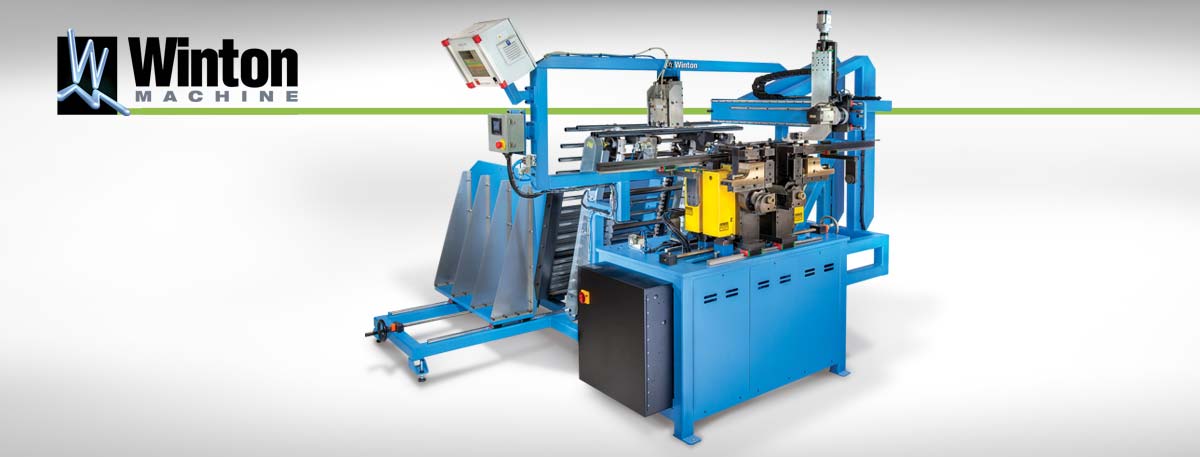

Automatic Twin Head Tube Bender - Model TW31

05-07 TW31 Twin Head Tube Bender - Automation p417 2018 - Model #: 21466-504

Watch the full Video OR click on the links below to find the exact part of the video you are intrested in.null

0:00 TW31 Twin Head Tube Bender
0:10 • High Repeatability Part-to-Part
0:20 • Weld Seam Detector
0:35 Touch Screen User Interface
0:47 Hopper Loader for Tube Pipe Bending
0:58 Tube Bending - 98%+ Accuracy on Seam Detection
1:10 2 Axis Servo Transfer for Tube Bending
1:24 Adjustable Distance between tube bends
1:46 Dual end justification for precise tube bending - Or on Vimeo
2:00 Programmable bend heads for improved automation
2:12 Contact Winton Machine for your next tube fabrication automation
2:23 Call us to quote your next tube bending automation project 1-888-321-1499

Advance automation control with 98+% accuracy.

Automatic tube fabrication centers improves your companies cost effecentcy.

When analyzing your manufacturing costs this automatic fabrication center is a wise solution.  You can drastically decrease your scrap material costs with 98+% accuracy as a result of an integrated weld seam de


tection system.  The hopper loader can speed up your overall process and reduce labor costs.  The twin head bender is completely programmable allowing you flexibility.  This automated process allows you to make repeatable bent parts with just one operator.

Product Details

Our Model TW31 Atomatic Tube Bending System includes:

• PLC controlled with touch screen user interface  -  includes on-board diagnostics
• Width adjustment for the entire system that accommodate part lengths 25” - 72”
• Hopper loader
• Weld seam detector for clocking the tube prior to bending
• 2 axis electric servo pick-n-place for minimal part to part cycle time
• Independent programmable bend heads allow for numerous bent configuration
• Made in the USA
